Brand: Iscar

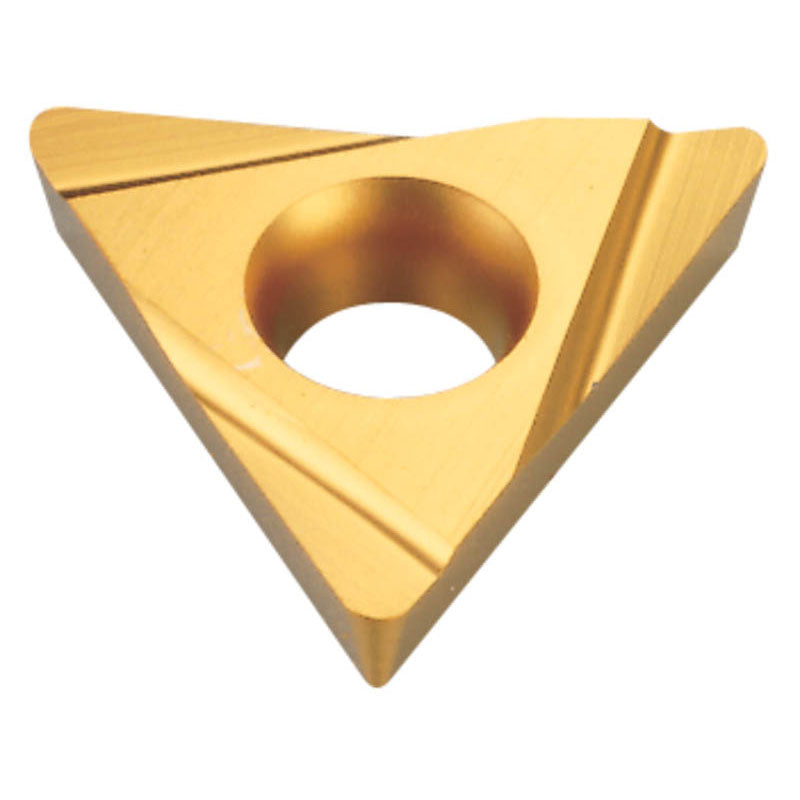

Iscar EH5503789 TPGH 2-2-L IC570
SKU: FTS-EH5503789
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5503789 TPGH 2-2-L IC570Full Description
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 0.118" |
| Application | | Insert | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.039" |
| Insert Style | TPGH | Depth of Cut Maximum (APMX) | 0.118" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Insert Size | 2-2 | Max. Turning Feed (ft(max)) | 0.0098 "/rev |
| Cutting Edge Length (L) | 0.433" | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 0.094" | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4" | Chip Breaker Type | H |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+TiN | Shape | 60° Triangle |
| Grade | IC570 | Series/List # | TPGH 2-2-H |
| Tool Type | Turn Positive Inserts | Body Material | Carbide |
Family Description
Triangular 11° positive flank inserts with a ground chipformer. Used for finishing, provide excellent surface finish. Suitable for a wide range of materials.
For dimensions and tolerances, see more info.
