Brand: Dorian

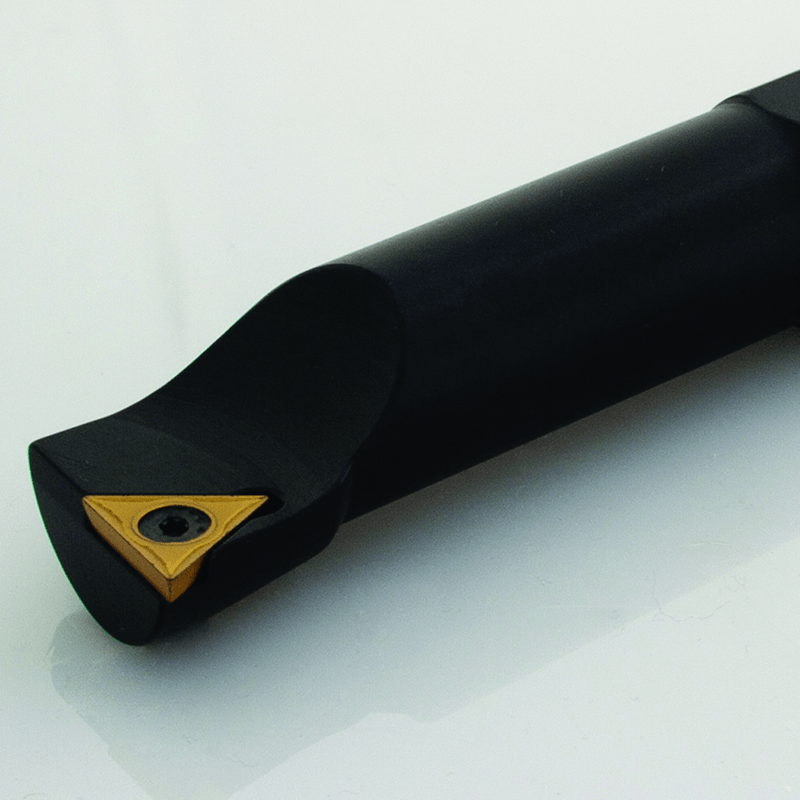

Dorian FL4555670 Indexable Boring Bars - TPBN20-4 Right Hand 1-1/4" Shank
SKU: FTS-FL4555670
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 55670 Indexable Boring Bars - TPBN20-4 Right Hand 1-1/4" ShankFull Description
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 12" | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 12" | Tool Type | Boring Bars-Standard |
| Functional Width (WF) | 0.682" | Style | TPBN |
| Master Insert Identification (MIID) | TP_H43_ | Rake Angle | 5 Degrees |
| Minimum Bore Diameter (DMIN) | 1.37" |
• Individual Boring Bars • From Roughing to Finishing, Square Shoulders to Through Bores. For positive triangular inserts, 11° clearance, Molded Chipbreaker • Small Hole Capacity to a minimum of .430. • High Performance Positive rake for fast material removal as well as finishing. • Rigidity Bar made of heat treated, precision ground alloy steel. • Insert Locking The insert is held more secure with the Torx screw than hex screws, and reduces tool slipping. • Chip Control Advanced precision chip clearance allows for for maximum boring capacity.
