Brand: Dorian

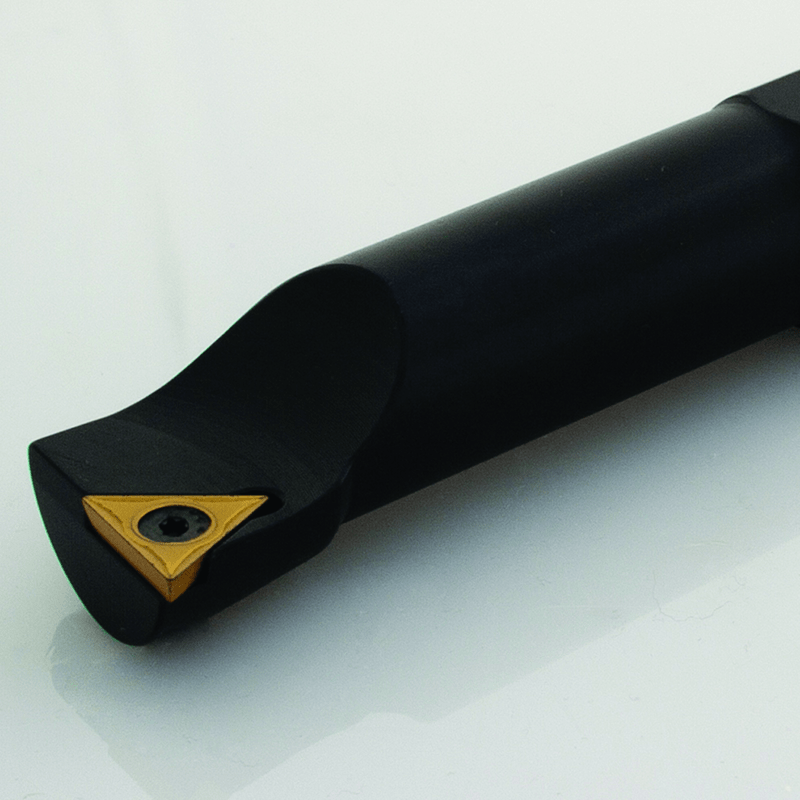

Dorian FL4543860 Indexable TPBN12-3 Right Hand 3/4" SH

SKU: FTS-FL4543860
MPN: 55664

$76.90
Unit price per
Save $21.32

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Dorian 55664 Indexable TPBN12-3 Right Hand 3/4" SH

Full Description

Connection Diameter Machine Side (DCONMS)	3/4"	Cutting Direction (HAND)	Right Hand
Functional Length (LF)	10"	Coolant Supply Property (CSP)	External
Overall Length (OAL)	10"	Tool Type	High Performance Indexable Boring Bars
Functional Width (WF)	0.422"	Style	TPBN
Master Insert Identification (MIID)	TP_H32._	Rake Angle	5 Degrees
Minimum Bore Diameter (DMIN)	0.845"

• Individual Boring Bars • From Roughing to Finishing, Square Shoulders to Through Bores. For positive triangular inserts, 11° clearance, Molded Chipbreaker • Small Hole Capacity to a minimum of .430. • High Performance Positive rake for fast material removal as well as finishing. • Rigidity Bar made of heat treated, precision ground alloy steel. • Insert Locking The insert is held more secure with the Torx screw than hex screws, and reduces tool slipping. • Chip Control Advanced precision chip clearance allows for for maximum boring capacity.
