Brand: OSG USA, Inc.

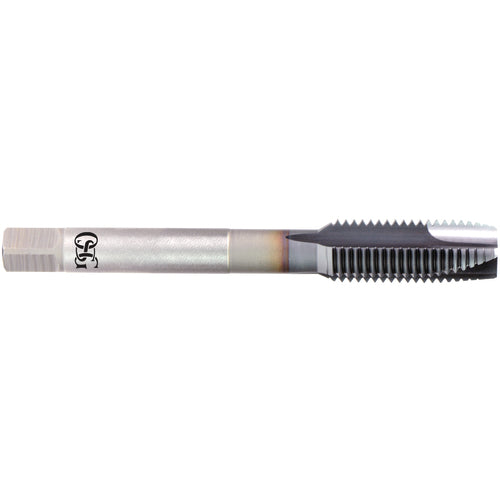

OSG USA, Inc. TP531651002508 M20x2.5 3FL D7 VC-10 Spiral Point Tap - V Coating
SKU: FTS-TP531651002508
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP531651002508 M20x2.5 3FL D7 VC-10 Spiral Point Tap - V CoatingFull Description
| Thread Standard | Metric | Cutting Edge Material | VC10 |
| Thread Size | M20 x 2.5 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M20 | Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 2.5 mm | Connection Diameter Machine Side (DCONMS) | 16.56 mm |
| Thread Tolerance Class (TCTR) | D7 | Thread Cutting Part Length (THL) | 30 mm |
| Usable Length (LU) | 44 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 140 mm | Style | Plug |
| Chamfer | 2P-3P | Measurement Type | Metric |
| Coating | V Coating | Series/List # | 16510 |
| Flute Count (NOF) | 3 |
