Brand: OSG USA, Inc.

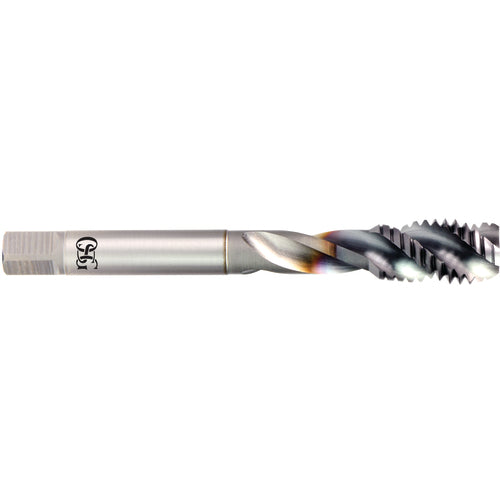

OSG USA, Inc. TP531650000908 M8 1.0 Dia. - D5-3 FL-2.5P Spiral Flute Mod. Bottoming EXOTAP®, A-TAP®,TiCN
SKU: FTS-TP531650000908
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP531650000908 M8 1.0 Dia. - D5-3 FL-2.5P Spiral Flute Mod. Bottoming EXOTAP®, A-TAP®,TiCNFull Description
| Thread Diameter Size (TDZ) | M8 | Cutting Edge Material | VC-10 |
| Thread Pitch (TP) | 1 mm | Thread Tolerance Class (TCTR) | D5 |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 90 mm | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 10 mm | Coating | V Coating |
| Usable Length (LU) | 35 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | End Shape | Chamfer |
| Flute Count (NOF) | 3 | Style | Modified Bottoming |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Metric |
