Brand: OSG USA, Inc.

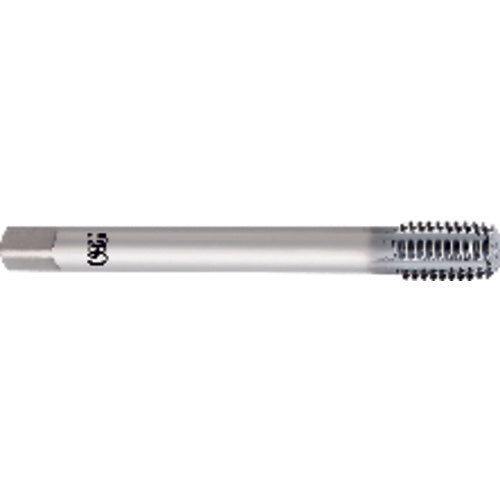

OSG USA, Inc. TP521635008255 M8 1.25 D5 EXOPRO S-XPF DIN
SKU: FTS-TP521635008255
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP521635008255 M8 1.25 D5 EXOPRO S-XPF DINFull Description
| Tool Type | High Performance Tap | Applicable Material | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | M8 | Coating | V Coating |
| Overall Length (OAL) | 90 mm | Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 1-1/8" | Chamfer | 2.5P |
| Usable Length (LU) | 35 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | Style | Forming |
| Thread Tolerance Class (TCTR) | D5 | Cutting Edge Material | HSSCo |
| Thread Standard | Metric | Series/List # | 16350 |
Remarks
• Cobalt High Speed Steel• OSG's V Multi-layered Coating• Modified Bottom Chamfer• DIN Overall Length• Recommended for Aluminum, Carbon Steels, Alloy Steels, Die Steels up to 20 HrC, Stainless Steels and Hardened Steels up to 35 HrC
