Brand: OSG USA, Inc.

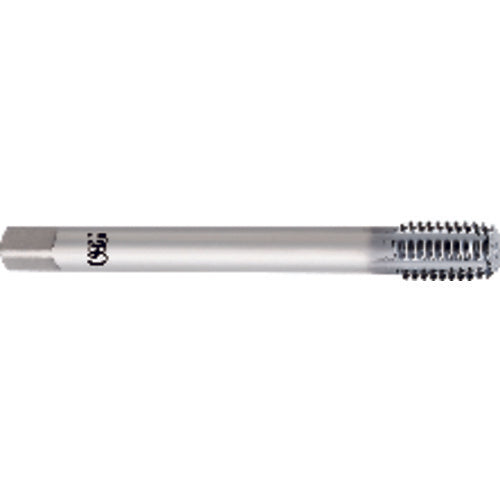

OSG USA, Inc. TP521605012205 1/2-20 Dia-H5-HSS-CO-V Coating-Forming Tap
SKU: FTS-TP521605012205
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP521605012205 1/2-20 Dia-H5-HSS-CO-V Coating-Forming TapFull Description
| Tool Type | High Performance Tap | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | 1/2" | Threads per Inch (TPI) | 20 |
| Overall Length (OAL) | 3.94" | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 1-21/32" | Measurement Type | Inch |
| Usable Length (LU) | 1.933" | Style | Forming |
| Connection Diameter Machine Side (DCONMS) | 0.367" | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H5 | Cutting Edge Material | HSSCo |
| Thread Standard | UNF | Series/List # | 16050 |
| Applicable Material | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Thread Size | 1/2" - 20 |
| Coating | Vanadium |
Remarks
• Cobalt High Speed Steel• Coolant Thru• OSG's V Multi-layered Coating• Din Overall Length• Modified Bottom Chamfer• Recommended for Aluminum, Carbon Steels, Alloy Steels, Die Steels up to 20 HrC, Stainless Steels and Hardened Steels up to 35 HrC
