Brand: OSG USA, Inc.

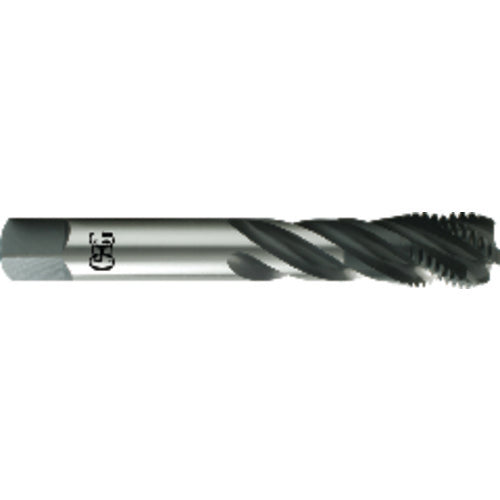

OSG USA, Inc. TP491301502101 1-5/8-8-2B-6FL-HSSE-Steam Oxide-Modified Bottoming-Spiral Flute Tap
SKU: FTS-TP491301502101
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP491301502101 1-5/8-8-2B-6FL-HSSE-Steam Oxide-Modified Bottoming-Spiral Flute TapFull Description
| Thread Diameter Size (TDZ) | 1-5/8" | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 8 | Tool Type | High Performance Tap |
| Thread Standard | UNF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 200 mm | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 3-3/16" | Flute Type | Spiral |
| Usable Length (LU) | 3.251" | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1.305" | Style | Modified Bottoming |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | ToolTypeName | Spiral Flute Taps |
Remarks
• Premium Vanadium High Speed Steel• For Verical Application• DIN Overall Length• Steam Oxide Coating• Modified Bottom Chamfer• Recommended for Cast Iron, Carbon Steels, Alloy Steels and Hardened Steels up to 35 HrC
