Brand: OSG USA, Inc.

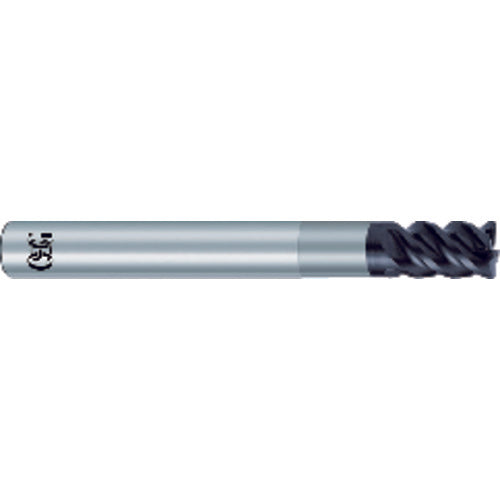

OSG USA, Inc. TP48447100611 1/8 Dia. ?1/8 Shank ?1/8 DOC ?2-1/4 OAL, Carbide, WXS, 4 Flute, 45° Helix, Round, Corner Radius, Solid End Mill
SKU: FTS-TP48447100611
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP48447100611 1/8 Dia. נ1/8 Shank נ1/8 DOC נ2-1/4 OAL, Carbide, WXS, 4 Flute, 45° Helix, Round, Corner Radius, Solid End MillFull Description
| Cutting Diameter (DC) | 1/8" | Usable Length (LU) | 1/8" |
| Connection Diameter Machine Side (DCONMS) | 1/8" | Corner Radius (RE) | 0.015" |
| Depth of Cut Maximum (APMX) | 1/8" | Neck Diameter (DN) | 0.12" |
| Overall Length (OAL) | 2-1/4" | Neck Length (LN) | 1/2" |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | WXS | Style | Corner Radius |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125" |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 4471 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.015" |
Remarks
• High performance micrograin carbide• WXS coating• Corner radius• For high feed milling• Recommended for carbon steels, alloy steels, tool steels, hardened steels up to 65 HrC and cast iron.
