Brand: OSG USA, Inc.

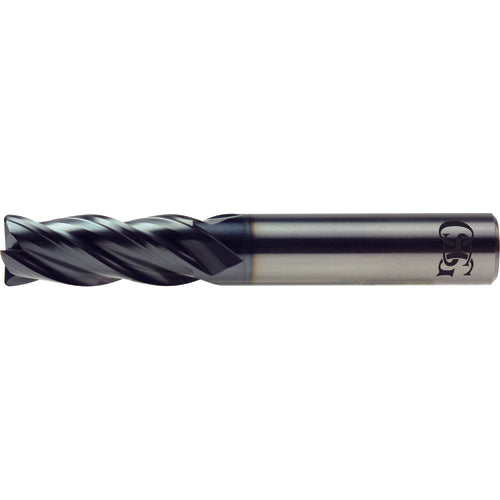

OSG USA, Inc. TP45VG4361875 3/16 Dia. ?3/16 Shank ?5/16 DOC ?2 OAL, Carbide, TiALN, 4 Flute, 35° Helix, Round, Chamfer, Solid End Mill
SKU: FTS-TP45VG4361875
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP45VG4361875 3/16 Dia. נ3/16 Shank נ5/16 DOC נ2 OAL, Carbide, TiALN, 4 Flute, 35° Helix, Round, Chamfer, Solid End MillFull Description
| Cutting Diameter (DC) | 3/16" | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16" | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 5/16" | Usable Length (LU) | 5/16" |
| Overall Length (OAL) | 2" | Corner Radius (RE) | None |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.01" |
| Coating | AlTiN | Style | Corner Chamfer |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1875" |
| Flute Helix Angle (FHA) | 35 Degrees | Series/List # | VG436 |
Remarks
• OSG List No. VG436.
