Brand: OSG USA, Inc.

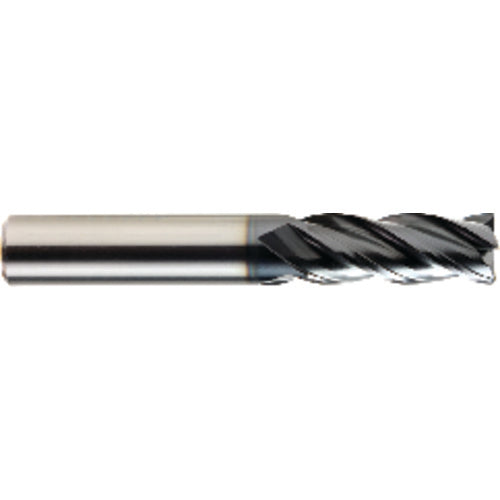

OSG USA, Inc. TP45VG4345001 1/2 Dia. ?1/2 Shank ?1 DOC ?3 OAL, Carbide, TiAlN, 4 Flute, Weldon, Corner Radius, Solid End Mill
SKU: FTS-TP45VG4345001
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP45VG4345001 1/2 Dia. נ1/2 Shank נ1 DOC נ3 OAL, Carbide, TiAlN, 4 Flute, Weldon, Corner Radius, Solid End MillFull Description
| Cutting Diameter (DC) | 1/2" | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2" | Corner Radius (RE) | 0.03" |
| Depth of Cut Maximum (APMX) | 1" | Tool Type | Single-End|High Performance |
| Overall Length (OAL) | 3" | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5" |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | VG434 |
| Shank Type | Weldon | Corner Radius (RE) / Chamfer Width (CHW) | 0.03" |
Remarks
• High Performance Carbide• Center Cutting• TiALN Coating• Corner Radius• 4 Flute• Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels, Stainless Steels, Hardened Steels up to 45 HrC and High Heat Alloys
