Brand: OSG USA, Inc.

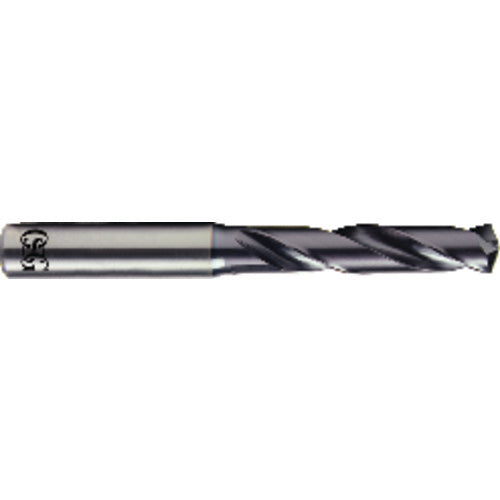

OSG USA, Inc. TP45HP2435311 17/32 HP CARB DRILL 3D
SKU: FTS-TP45HP2435311
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP45HP2435311 17/32 HP CARB DRILL 3DFull Description
| Drill Bit Size / Cutting Diameter (DC) | 17/32" | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 17/32" | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5313" | Tool Type | Solid Carbide |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP243 |
| Applicable Material | Aluminum / Non-Ferrous Materials | Hard Materials | Usable Length (LU) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Length Chip Flute (LCF) | 60 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 107 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 3 |
| Functional Length (LF) | 60 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Remarks
• High Performance Carbide Drill• OSG's WD1 Coating• 3xD Length• Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels and Hardened Steels up to 35 HrC
