Brand: OSG USA, Inc.

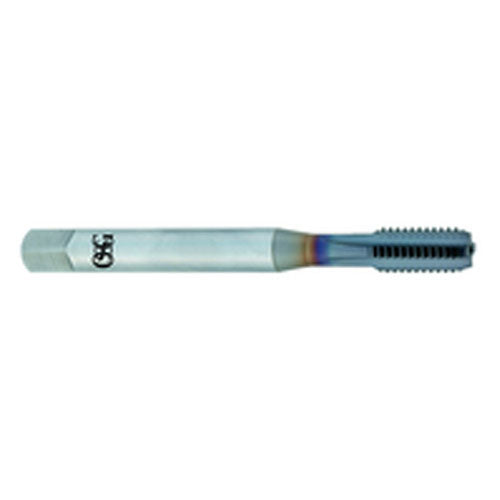

OSG USA, Inc. TP291005700308 1/4-28 Dia-H3-4 FL- VC10 TiCN-Bottoming Straight Flute Tap
SKU: FTS-TP291005700308
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP291005700308 1/4-28 Dia-H3-4 FL- VC10 TiCN-Bottoming Straight Flute TapFull Description
| Thread Diameter Size (TDZ) | 1/4" | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 28 | Chamfer | 1.5P-2P |
| Thread Standard | NF | Coating | TiCN |
| Overall Length (OAL) | 2-1/2" | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1" | End Shape | Chamfer |
| Usable Length (LU) | 1" | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255" | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials | Series/List # | 10057 |
| Cutting Edge Material | VC10 | Thread Size | 1/4" - 28 |
| Thread Tolerance Class (TCTR) | H3 |
Remarks
• EXOTAP DC Oil Bottom Taps• Coolant thru • TiCN Coated• Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.
