Brand: OSG USA, Inc.

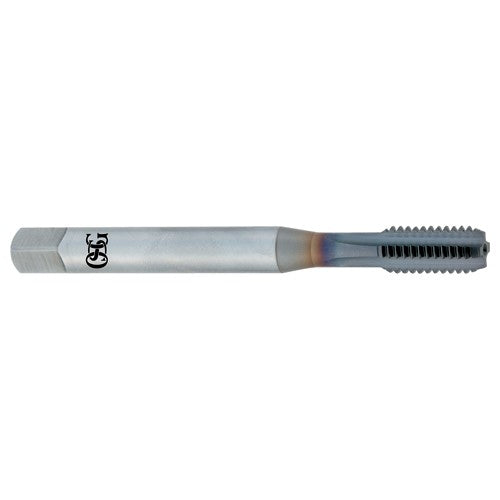

OSG USA, Inc. TP291005300708 3/8-16 Dia-H3-4 FL- VC10 TiCN-Bottoming Straight Flute Tap
SKU: FTS-TP291005300708
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP291005300708 3/8-16 Dia-H3-4 FL- VC10 TiCN-Bottoming Straight Flute TapFull Description
| Thread Diameter Size (TDZ) | 3/8" | Special Feature | DIN Length |
| Threads per Inch (TPI) | 16 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 100 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/4" | Flute Type | Straight |
| Usable Length (LU) | 1.377" | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.38" | Style | Bottoming |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials | Measurement Type | Inch |
| Cutting Edge Material | VC10 | Series/List # | 10053 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 3/8" - 16 |
Remarks
• EXOTAP DC Oil Bottom Taps• DIN Overall length Coolant thru • VC10 material to achieve high-speed tapping & long tool life• TiCN Coated• Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.
