Brand: OSG USA, Inc.

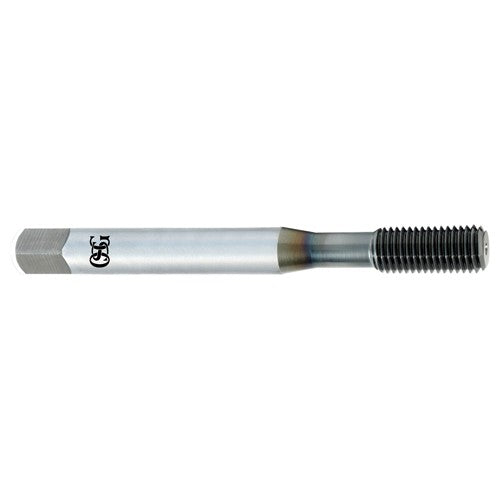

OSG USA, Inc. TP271405007708 1/4-28 Dia-H5-0 FL-VC10 TiCN-Standard Thread Forming Tap
SKU: FTS-TP271405007708
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP271405007708 1/4-28 Dia-H5-0 FL-VC10 TiCN-Standard Thread Forming TapFull Description
| Tool Type | High Performance Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | 1/4" | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-1/2" | Threads per Inch (TPI) | 28 |
| Thread Cutting Part Length (THL) | 1" | Chamfer | 1.5P |
| Usable Length (LU) | 1.017" | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.255" | Style | Forming |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H5 | Cutting Edge Material | VC-10 |
| Thread Standard | UNF | Series/List # | 14050 |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials | Thread Size | 1/4" - 28 |
Remarks
• NRT Forming Taps• VC10 Material to achieve high-speed tapping and long tool life• TiCN Coated only• Maximize performance in tough materials such as stainless steel (35 HRC)
