Brand: OSG USA, Inc.

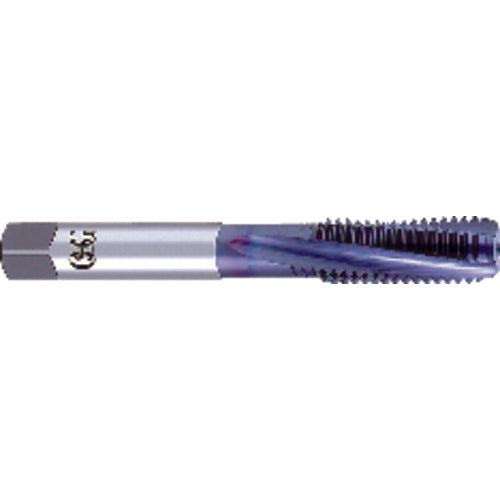

OSG USA, Inc. TP251305714508 7/8-14? H5-4FL-VC10 TiCN-Semi-Bott Spiral Point Tap
SKU: FTS-TP251305714508
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP251305714508 7/8-14ﾇ H5-4FL-VC10 TiCN-Semi-Bott Spiral Point TapFull Description
| Thread Diameter Size (TDZ) | 7/8" | Cutting Edge Material | VC-10 |
| Threads per Inch (TPI) | 14 | Thread Tolerance Class (TCTR) | H5 |
| Thread Standard | UNF | Tool Type | Spiral Flute Tap |
| Overall Length (OAL) | 4.68" | Chamfer | 2.5P-3P |
| Usable Length (LU) | 2.653" | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.697" |
Remarks
• High Performance Spiral Fluted Taps for Nickel Based Alloys • VC-10 Premium Powered High Speed Steel• Modifed Bottom Chamfer• OSG's Multi-layer Coating
