Brand: OSG USA, Inc.

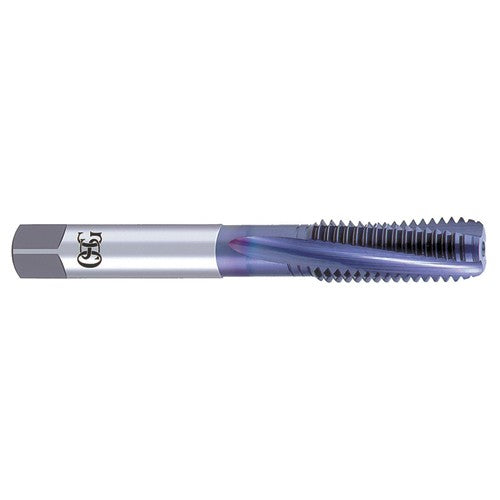

OSG USA, Inc. TP251305712508 7/16-14 H3-3FL-VC10 TiCN-Spiral Flute Tap
SKU: FTS-TP251305712508
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP251305712508 7/16-14 H3-3FL-VC10 TiCN-Spiral Flute TapFull Description
| Thread Diameter Size (TDZ) | 7/16" | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 14 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 6" | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-7/16" | Flute Type | Spiral |
| Usable Length (LU) | 1.712" | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.322" | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Applicable Material | Super-Alloys / Titanium | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | VC-10 |
Remarks
• List 3121Ti-vc,EXOTAP VC–10TI, spiral flute• High Performance Tap For Titanium Alloys• Available TiCN Finish Only• 6Al4V Titanium • Hardened Steel up to 35 HRC
