Brand: OSG USA, Inc.

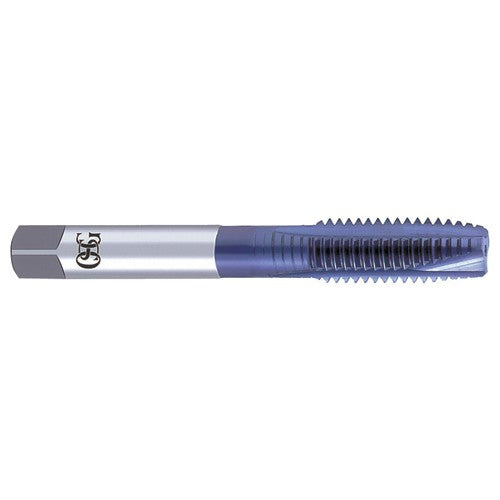

OSG USA, Inc. TP251105612908 1/2-13 H3-3FL-VC10 TiCN-Plug Spiral Point Tap
SKU: FTS-TP251105612908
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP251105612908 1/2-13 H3-3FL-VC10 TiCN-Plug Spiral Point TapFull Description
| Thread Standard | NC | Cutting Edge Material | VC10 |
| Thread Size | 1/2" - 13 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 1/2" | Applicable Material | Super-Alloys / Titanium |
| Threads per Inch (TPI) | 13 | Connection Diameter Machine Side (DCONMS) | 0.367" |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 1-21/32" |
| Usable Length (LU) | 1.354" | End Shape | Spiral Point |
| Overall Length (OAL) | 3-3/8" | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiCN | Series/List # | 312TI |
| Flute Count (NOF) | 3 |
Remarks
• List 3121Ti-vc, EXOTAP VC–10TI spiral point• High Performance Tap For Titanium Alloys• Available TiCN Finish Only• 6Al4V Titanium • Hardened Steel up to 35 HRC
