Brand: OSG USA, Inc.

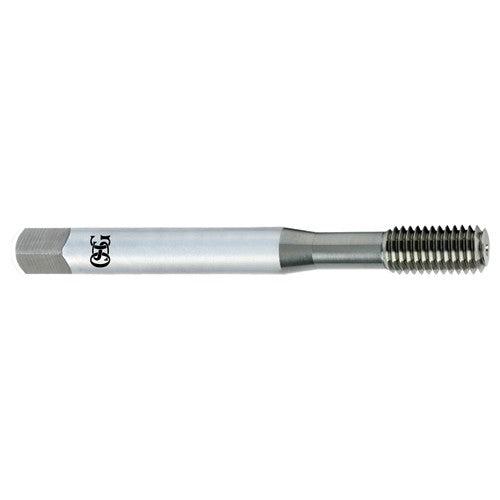

OSG USA, Inc. TP221410103100 M5 0.80 Dia-D7-0 FL-Cobalt Bright-Bottoming Thread Forming Tap
SKU: FTS-TP221410103100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP221410103100 M5 0.80 Dia-D7-0 FL-Cobalt Bright-Bottoming Thread Forming TapFull Description
| Tool Type | High Performance Tap | Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials |
| Thread Diameter Size (TDZ) | M5 | Coating | Bright |
| Overall Length (OAL) | 60 mm | Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 7/8" | Chamfer | 1.5P |
| Usable Length (LU) | 22.8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm | Style | Bottoming |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | D7 | Cutting Edge Material | HSSCo |
| Thread Standard | Metric | Series/List # | 14101 |
• M42 Cobalt Forming Taps• Metric• For material up to 30 HRC• Best performance - Aluminum materials - Carbon steel types: 1010, 1018, 1035, 1045 & 1065
