Brand: OSG USA, Inc.

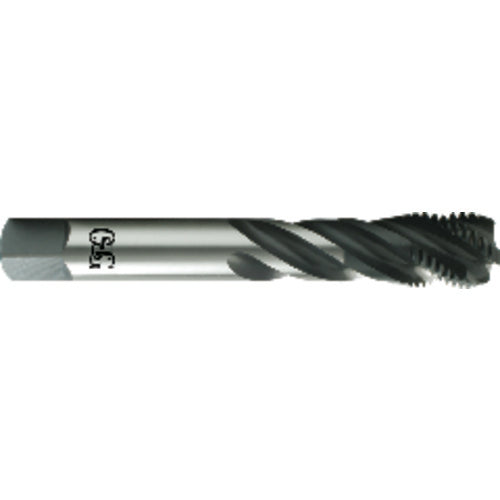

OSG USA, Inc. TP221311701001 M33 3.50 Dia-D10-HSSE-Steam Oxide-Spiral Flute Tap
SKU: FTS-TP221311701001
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. TP221311701001 M33 3.50 Dia-D10-HSSE-Steam Oxide-Spiral Flute TapFull Description
| Thread Diameter Size (TDZ) | M33 | Tool Type | High Performance Tap |
| Thread Pitch (TP) | 3.5 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | Black Oxide |
| Overall Length (OAL) | 180 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 2-9/16" | End Shape | Chamfer |
| Usable Length (LU) | 28 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 28.14 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | ToolTypeName | Thread Forming Taps |
| Thread Tolerance Class (TCTR) | D10 |
• Premium Vanadium High Speed Steel• For Vertical Application• DIN Overall Length• Steam Oxide Coating• Modified Bottom Chamfer• Recommended for Cast Iron, Carbon Steels, Alloy Steels and Hardened Steels up to 35 HrC
