Brand: Iscar

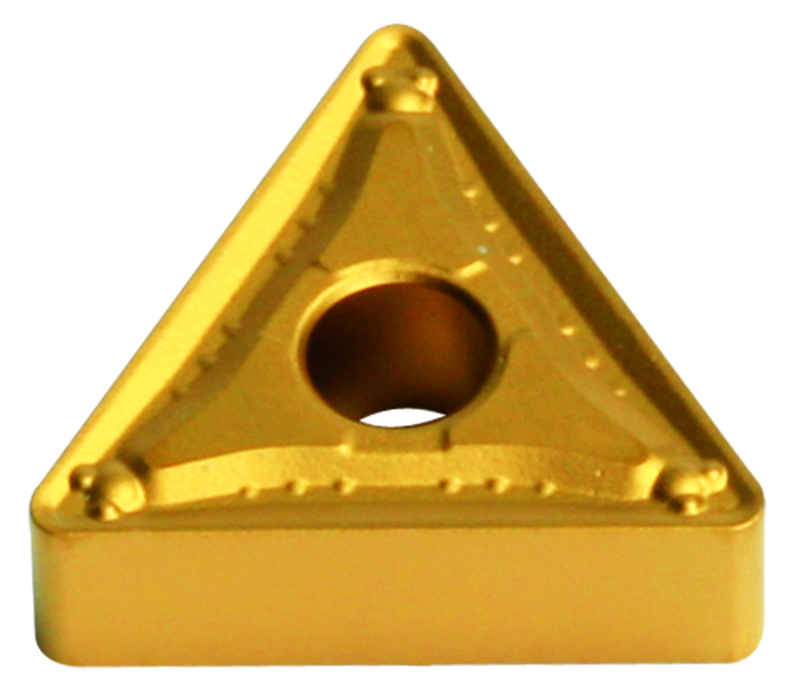

Iscar EH5550471 TNMG 432-TF IC807
SKU: FTS-EH5550471
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5550471 TNMG 432-TF IC807Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triang.93° Appr. Open | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.039" |
| Insert Style | TNMG | Depth of Cut Maximum (APMX) | 0.157" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.0059 "/rev |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.0157 "/rev |
| Cutting Edge Length (L) | 0.866" | Chip Breaker Type | TF |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2" | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMG 432-TF |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC807 |
Family Description
Double-sided, triangular insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
For dimensions and tolerances, see more info.
