Brand: ProCut

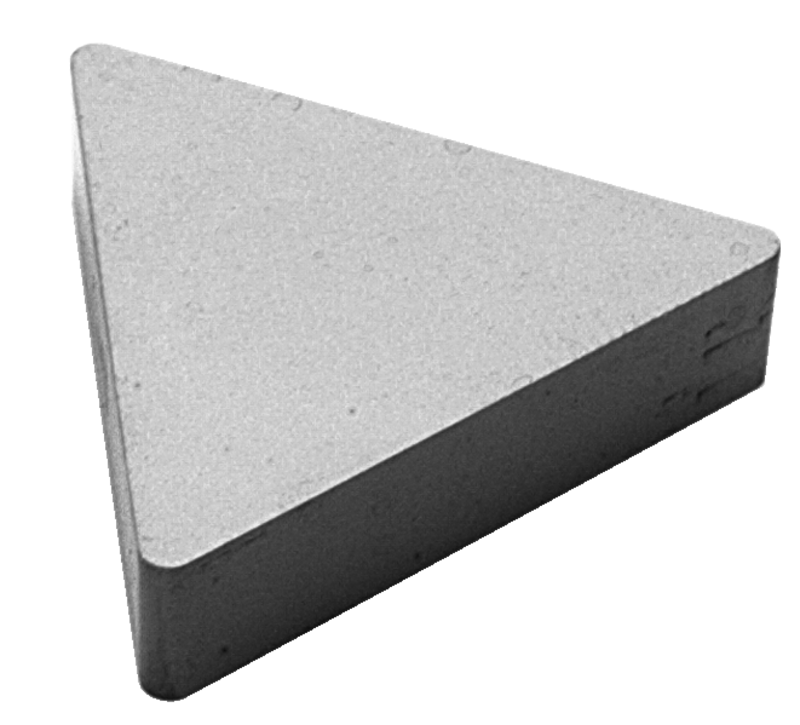

ProCut FF5510500 TNGN 333 Grade PCA2 - Turning Insert
SKU: FTS-FF5510500
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
ProCut FF5510500 TNGN 333 Grade PCA2 - Turning InsertFull Description
| Applicable Material | Cast Iron|Steel | Inscribed Circle Diameter (IC) | 3/8" |
| Insert Style | TNGN | Cutting Edge Material | Ceramic |
| Corner Radius (RE) | 0.047" | Grade | PCA2 |
| Insert Size | 333 | Tool Type | Turning Insert |
| Cutting Edge Length (L) | 3/8" | Shape | Triangle |
| Insert Thickness (S) | 0.187" |
• Ceramic Inserts for Hi-Speed Machine Applications • Application DataUse the strongest shape and largest nose radius possible. Round and square inserts should be used whenever possible since they are stronger than diamonds and triangles. For heavier cuts, 5/16" thick inserts are recommended. Use the largest lead angle possible. Use the largest side cutting edge that the shape of the workpiece allows. As the side cutting angle is increased, the length of the cutting edge that contracts the workpiece is increased and the load is distributed over a greater area of the cutting edge. Use proper edge preparation techniques. Proper edge factors in successfully applying ceramics over a wide range of materials and applications. • PCA–2 is Hot Pressed Black CeramicRoughing and finishing of hardened steel and chilled cast irons, and for machining cast irons with sandcast scale. Also clean irons or steel of hardness below 425 BHP or about Rockwell C–45.
