Brand: Tungaloy

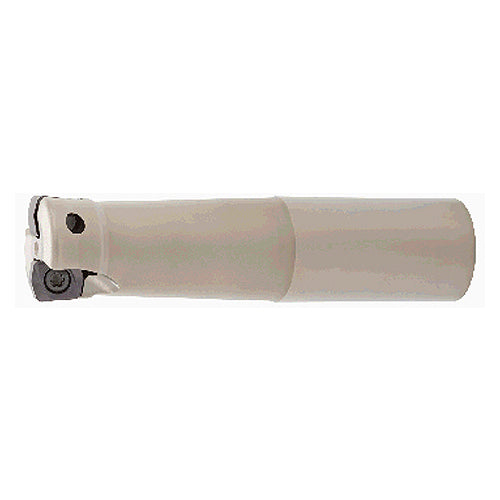

Tungaloy TG256879573 EXN06R125U0125W02
SKU: FTS-TG256879573
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG256879573 EXN06R125U0125W02Full Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Master Insert Identification (MIID) | LNMU06X5ZER-MJ |
| Cutting Diameter (DC) | 1-1/4" | Weight of Item (WT) | 1.54 lb. |
| Cutting Diameter Maximum (DCX) | 1-1/4" | Head Length (LH) | 3" |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 5.281" |
| Depth of Cut Maximum (APMX) | 0.059" | Tool Type | Fast Feed Face mill |
| Overall Length (OAL) | 5.281" | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Face Milling | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Shank Length (LS) | 2.281" |
Super high feed milling endmills with double sided inserts with 4 edges
