Brand: Tungaloy

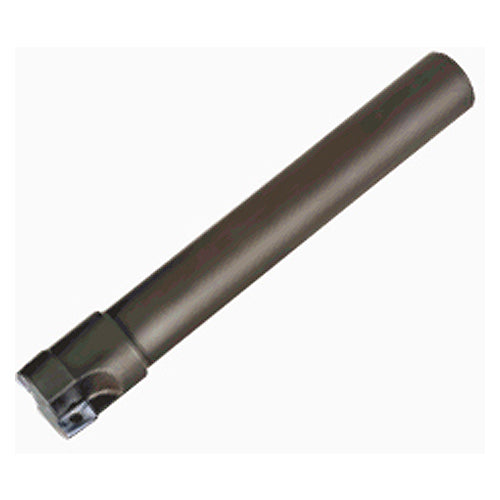

Tungaloy TG256829501 EPS11125RSBU
SKU: FTS-TG256829501
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG256829501 EPS11125RSBUFull Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Master Insert Identification (MIID) | ASMT11T304PDPR-MJ |
| Cutting Diameter (DC) | 1-1/4" | Weight of Item (WT) | 1.12 lb. |
| Cutting Diameter Maximum (DCX) | 1-1/4" | Head Length (LH) | 1.378" |
| Cutting Item Count (CICT) | 5 | Functional Length (LF) | 3.74" |
| Depth of Cut Maximum (APMX) | 0.417" | Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 3.74" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Shank Length (LS) | 2.362" |
High precision shoulder square endmills with ASMT/ASGT11inserts
When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info".
