Brand: Tungaloy

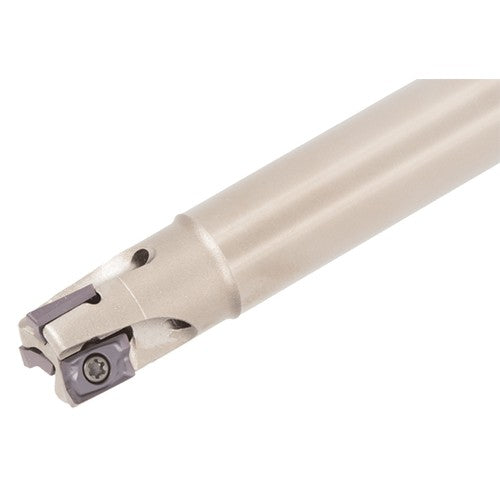

Tungaloy TG256733150 EPAV06U0.50C0.50R03
SKU: FTS-TG256733150
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG256733150 EPAV06U0.50C0.50R03Full Description
| Cutting Diameter (DC/DCX) | 1/2" | Master Insert Identification (MIID) | AVGT060304PBER-MJ |
| Cutting Diameter (DC) | 1/2" | Weight of Item (WT) | 0.15 lb. |
| Cutting Diameter Maximum (DCX) | 1/2" | Head Length (LH) | 0.787" |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 3-1/4" |
| Depth of Cut Maximum (APMX) | 0.236" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3-1/4" | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2.463" |
| Connection Diameter Machine Side (DCONMS) | 1/2" |
Mini square shoulder milling cutter, Shank type
