Brand: Tungaloy

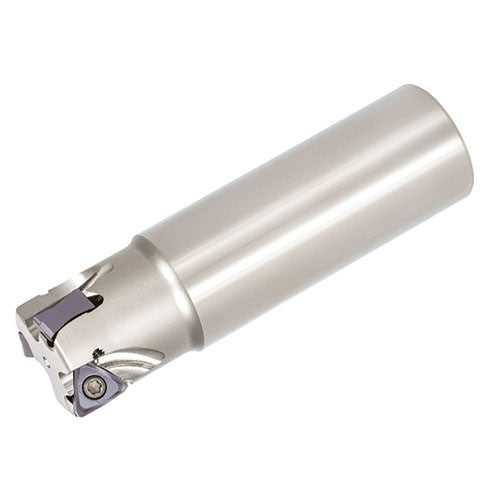

Tungaloy TG256730277 EPTN12U1.50C1.25R04N
SKU: FTS-TG256730277
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG256730277 EPTN12U1.50C1.25R04NFull Description
| Cutting Diameter (DC/DCX) | 1-1/2" | Weight of Item (WT) | 1.78 lb. |
| Cutting Diameter (DC) | 1-1/2" | Head Length (LH) | 1-1/2" |
| Cutting Diameter Maximum (DCX) | 1-1/2" | Functional Length (LF) | 4-1/2" |
| Cutting Item Count (CICT) | 4 | Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 0.433" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4-1/2" | Measurement Type | Inch |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Shank Length (LS) | 3" |
| Master Insert Identification (MIID) | TNMU120708PER-MJ |
Square Shoulder milling cutters with double-sided triangle insert; Shank Type
