Brand: Tungaloy

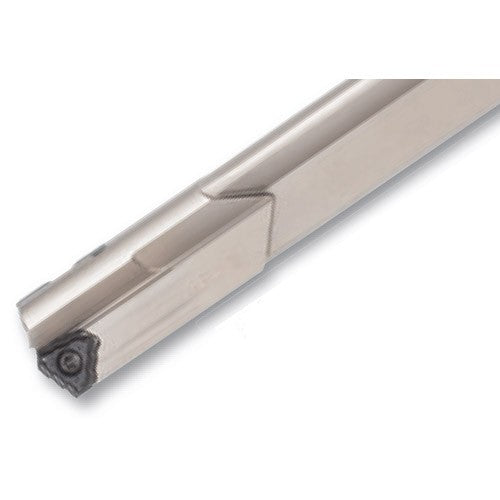

Tungaloy TG254820513 MCTR22.23XU31.75-15
SKU: FTS-TG254820513
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG254820513 MCTR22.23XU31.75-15Full Description
| Cutting Diameter (DC) | 0.8752" | Overall Length (OAL) | 17.969" |
| Usable Length (LU) | 13.717" | Point Length (PL) | 0.134" |
| Application | | General Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Master Insert Identification (MIID) | TOHT110405R-NDJ |
| Shank Length (LS) | 2.362" | Body Material | Steel |
| Functional Length (LF) | 15.472" | Decimal Equivalent | 0.8752" |
Drill body for lathes and machining centers, L/D = 15
Tool diameter (DC) tolerance: 0 / 0.07 Applicable tolerance range of hole diameter: + 0.05 / 0.1
