Brand: Tungaloy

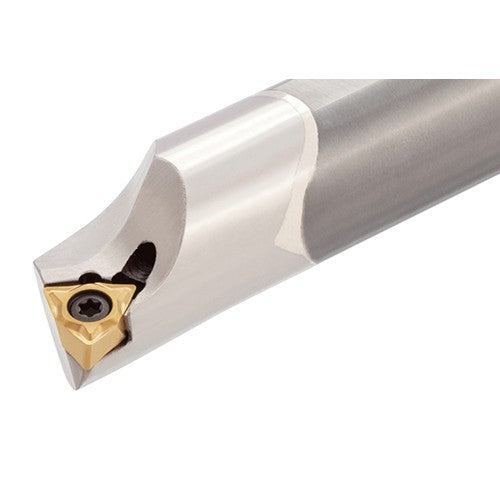

Tungaloy TG206990704 E06-SWLXL2-D08

SKU: FTS-TG206990704
MPN: 6990704

$387.54
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Tungaloy 6990704 E06-SWLXL2-D08

Full Description

Connection Diameter Machine Side (DCONMS)	3/8"	Application	\| For 80deg Trigon insert \| For Miniature machining \|
Functional Length (LF)	5"	Rake Angle Axial (GAMP)	-10 Degrees
Head Length (LH)	1"	Rake Angle Radial (GAMF)	-14 Degrees
Shank Height (H)	0.35"	Tool Type	TOOLHOLDERS - FOR BORING & INTERNAL PROFILING
Functional Width (WF)	0.281"	Body Material	Carbide
Master Insert Identification (MIID)	WXGU221R	Style	SWLXL
Minimum Bore Diameter (DMIN)	1/2"	Measurement Type	Inch

Family Description

Screw-on boring bars for trigon insert with 6 edges

The right hand insert (R) is used for the left hand toolholders (SWLXL04 D**), and the left hand insert (L) is used for the right hand toolholders (SWLXR04 D**). Torque:Recommended torque (Nm) for clamping.
