Brand: Tungaloy

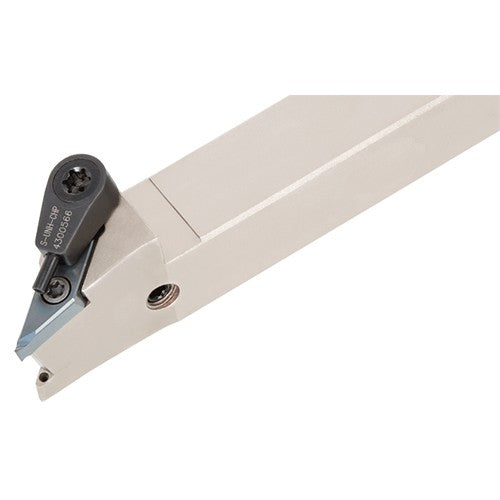

Tungaloy TG206737425 JSVJ2XR087-CHP
SKU: FTS-TG206737425
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG206737425 JSVJ2XR087-CHPFull Description
| Shank Height (H) | 1/2" | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 1/2" | Master Insert Identification (MIID) | VXGU73.50.5MFL-JS |
| Overall Length (OAL) | 3.344" | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 3.344" | Body Material | Steel |
| Head Length (LH) | 0.787" | Measurement Type | Inch |
| Functional Width (WF) | 0" |
No-offset Screw-on toolholder for VXGU inserts, with channels for high pressure coolant
Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque: Recommended torque (Nm) for clamping.
