Brand: Tungaloy

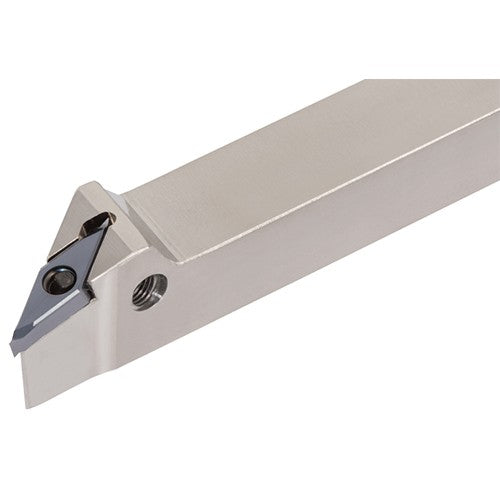

Tungaloy TG206735009 JPVJ2XL1616X09
SKU: FTS-TG206735009
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG206735009 JPVJ2XL1616X09Full Description
| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | VXGU09T202MFR-JS |
| Overall Length (OAL) | 120 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Head Length (LH) | 19 mm | Measurement Type | Metric |
| Functional Width (WF) | 16 mm |
No-offset Back clamp toolholder with 93deg approach angle, for VXGU inserts
Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping.
