Brand: Tungaloy

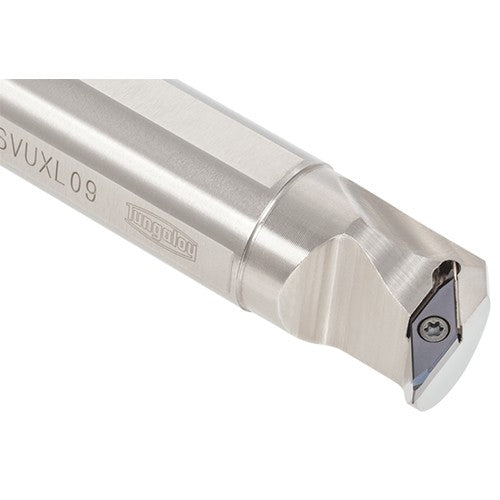

Tungaloy TG206734989 JS254X-SVUXL09
SKU: FTS-TG206734989
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG206734989 JS254X-SVUXL09Full Description
| Shank Height (H) | 0.945" | Connection Diameter Machine Side (DCONMS) | 1" |
| Shank Width (B) | 0.945" | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 4.724" | Master Insert Identification (MIID) | VXGU09T202MFL-JS |
| Functional Length (LF) | 4.724" | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Head Length (LH) | 0.984" | Body Material | Steel |
| Functional Width (WF) | 0.394" | Measurement Type | Inch |
Screw-on toolholder with 93deg approach angle, for 35deg rhombic insert with 4 edges
Left hand toolholders (L) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping.
