Brand: Tungaloy

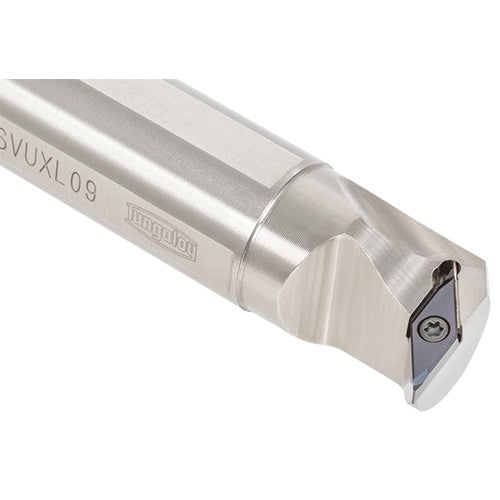

Tungaloy TG206734983 JS19G-SVUXL09

SKU: FTS-TG206734983
MPN: 23231001

$222.31
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Tungaloy TG206734983 JS19G-SVUXL09

Full Description

Shank Height (H)	0.709"	Connection Diameter Machine Side (DCONMS)	3/4"
Shank Width (B)	0.709"	Cutting Direction (HAND)	Left Hand
Overall Length (OAL)	3.543"	Master Insert Identification (MIID)	VXGU09T202MFL-JS
Functional Length (LF)	3.543"	Application	\| For 35deg Rhombic insert \| For Miniature machining \|
Head Length (LH)	0.984"	Body Material	Steel
Functional Width (WF)	0.394"	Measurement Type	Inch

Screw-on toolholder with 93deg approach angle, for 35deg rhombic insert with 4 edges

Left hand toolholders (L) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping.
