Brand: Tungaloy

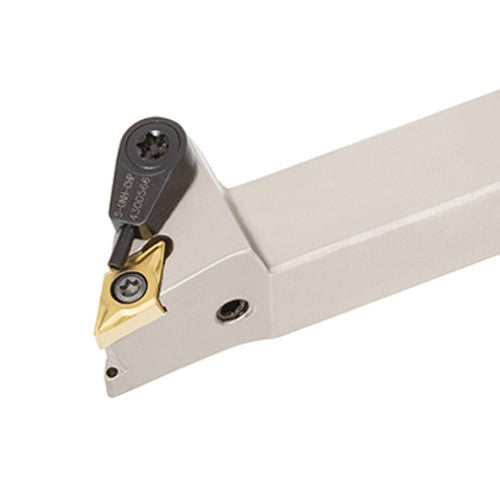

Tungaloy TG206730844 JSDJ2XL082-CHP
SKU: FTS-TG206730844
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG206730844 JSDJ2XL082-CHPFull Description
| Shank Height (H) | 1/2" | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1/2" | Master Insert Identification (MIID) | DXGU220.5R |
| Overall Length (OAL) | 3.344" | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 3.344" | Body Material | Steel |
| Head Length (LH) | 3/4" | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND PROFILING |
| Functional Width (WF) | 0" | Measurement Type | Inch |
No-offset Screw-on toolholder for DX*U inserts with channels for high pressure coolant
Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping.
