Brand: Tungaloy

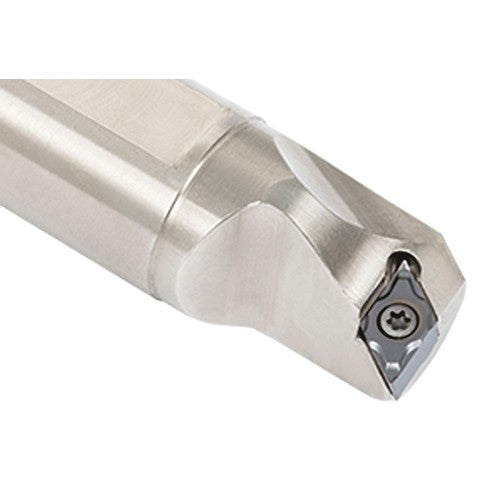

Tungaloy TG206728979 JS254X-SDUXL07
SKU: FTS-TG206728979
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy TG206728979 JS254X-SDUXL07Full Description
| Shank Height (H) | 0.945" | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 0.945" | Master Insert Identification (MIID) | DXGU220.5L |
| Overall Length (OAL) | 4.724" | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 4.724" | Body Material | Steel |
| Head Length (LH) | 0.984" | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0.394" | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1" |
Screw-on toolholder with 93deg approach angle, for 55deg rhombic insert with 4 edges
Left hand toolholders (L) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping.
