Brand: Te-Co
TE-CO SSJ8200T 1 OUTSD 8" AL MACH JAW 2.5"X7.94 TAPPED
SKU: TC-SSJ8200T
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO SSJ8200T 1 OUTSD 8" AL MACH JAW 2.5"X7.94 TAPPED**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO SSJ8200T 1 OUTSD 8" AL MACH JAW 2.5"X7.94 TAPPED
Technical Specifications:
- Manufactured from high quality aluminum, steel and 4140 steel.
- Tapped holes allow user to convert the Relock« vise into a single station vise using the single station conversion plate.
- SnapLock Jaws are only used with the ReLock« System.

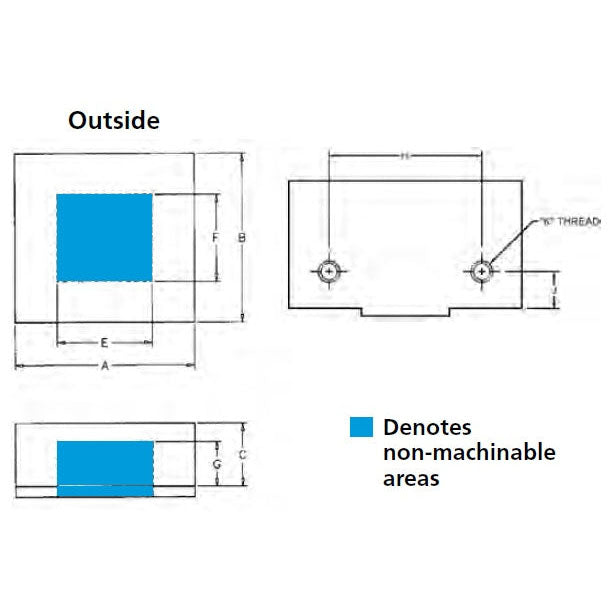

Vise Size | 8 in |
Model Compatibility | RWS8008 |
Style | Standard |
Total Width (A) | 7.500 in |
Total Length (B) | 7.940 in |
Total Height (C) | 2.500 in |
E | 3.125 in |
F | 2.625 in |
G | 1.500 in |
Thread Length | 1.300 in |
Hole Position (J) | 1.218 in |
Thread Size (K) | 5/8-11 x 1.3 |
Hole Spacing (H) | 4.750 in |
