Brand: Te-Co

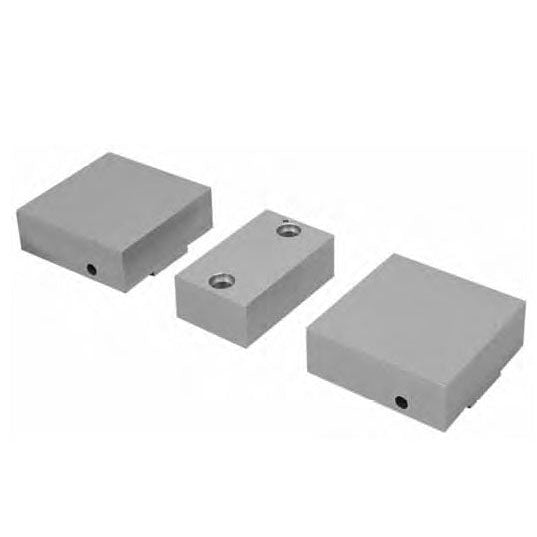

Te-Co Ssj8175 Snaplock Machinable Fixture Jaw 1 Center 8" 3.75"X9.94
SKU: TC-SSJ8175
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co Ssj8175 Snaplock Machinable Fixture Jaw 1 Center 8" 3.75"X9.94**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO SSJ8175 1 CTR AL 8" SNPLK MAC JAW 3.75"X9.94
Technical Specifications:
- Manufactured from high quality aluminum, steel, and 4140 steel.
- Jaws are reversible for additional work piece set-up.
- SnapLock jaws are to be used with the ReLock system only.
Model Compatibility | RWS8008, RWS8002 |
Vise Size | 8 in |
Type | Center |
Style | Tall |

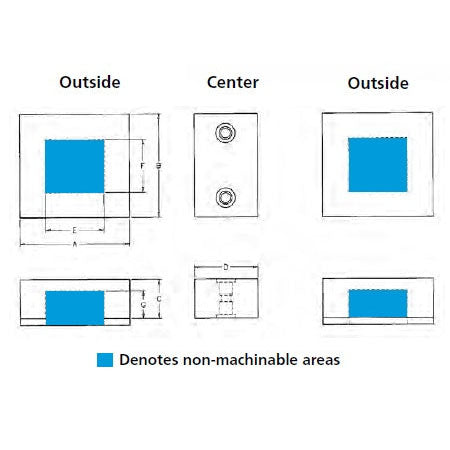

Total Length (B) | 7.940 in |
Total Height (C) | 3.750 in |
Total Width (D) | 4.500 in |
E | 3.125 in |
F | 2.625 in |
G | 1.500 in |
Bolt Hole Spacing | 5.875 in |
Thread Length | 0.750 in |
Counterbore Diameter | 1.000 in |
Counterbore Depth | 1.100 in |
Material | Aluminum |
Weight | 12.55 lb |
