Brand: Te-Co
TE-CO SSJ4200T 1 OUTSIDE 4" ALUMINUM MACHINABLE JAW 1.5"X3.94 TAPPED
SKU: TC-SSJ4200T
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO SSJ4200T 1 OUTSIDE 4" ALUMINUM MACHINABLE JAW 1.5"X3.94 TAPPED**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO SSJ4200T 1 OUTSIDE 4" ALUMINUM MACHINABLE JAW 1.5"X3.94 TAPPED
Technical Specifications:
- Manufactured from high quality aluminum, steel and 4140 steel.
- Tapped holes allow user to convert the Relock® vise into a single station vise using the single station conversion plate.
- SnapLock Jaws are only used with the ReLock® System.

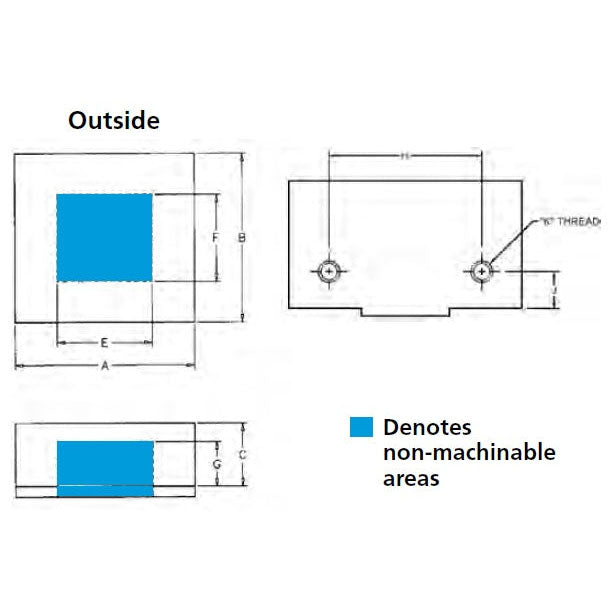

| Vise Size | 4 in |
| Model Compatibility | RWS4008 |
| Style | Standard |
| Total Width (A) | 4.375 in |
| Total Length (B) | 3.940 in |
| Total Height (C) | 1.500 in |
| E | 2.250 in |
| F | 2.060 in |
| G | 1.060 in |
| Thread Length | 0.630 in |
| Hole Position (J) | 0.687 in |
| Thread Size (K) | 3/8-16 x 0.63 |
| Hole Spacing (H) | 2.500 in |
| Type | Outside |
| Material | Aluminum |
| Weight | 2.40 lb |
