Brand: Te-Co
Te-Co Ssj4100Fc Snaplock Machinable Fixture Jaw 1 Center 4" 1.5"X3.94 Full Coverage
SKU: TC-SSJ4100FC
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co Ssj4100Fc Snaplock Machinable Fixture Jaw 1 Center 4" 1.5"X3.94 Full Coverage**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO SSJ4100FC 1 CTR AL 4" SNPLK MACH JAW 1.5"X3.94 FULL COVERAGE
Technical Specifications:
- Manufactured from high quality aluminum.
- Jaws are reversible for additional workpiece set-up.
- Jaws allow maximum part contact and part rigidity.
- SnapLock jaws are to be used with the ReLock system only.
Model Compatibility | RWS4008, RWS4002 |
Vise Size | 4 in |
Type | Center |
Style | Standard |

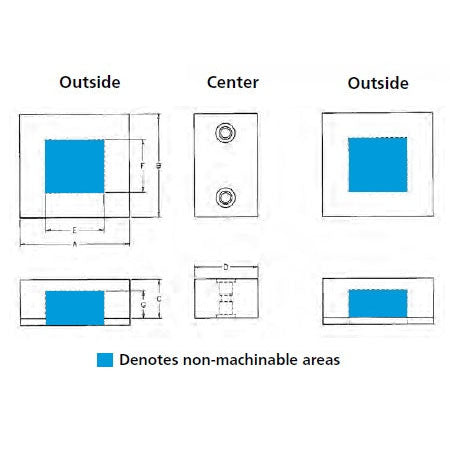

Total Length (B) | 3.940 in |
Total Height (C) | 1.500 in |
Total Width (D) | 6.500 in |
E | 2.250 in |
F | 2.060 in |
G | 1.060 in |
Thread Length | 0.750 in |
Counterbore Diameter | 0.593 in |
Counterbore Depth | 0.688 in |
Bolt Hole Spacing | 2.875 in |
Bolt Hole Diameter | 0.406 in |
Material | Aluminum |
Weight | 3.66 lb |
