TE-CO RWS8002 8
TE-CO RWS8002 8

Brand: Te-Co

TE-CO RWS8002 8" RELOCK® MANUAL VISES

SKU: TC-RWS8002
MPN: RWS8002

  • Save $29.58
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

TE-CO RWS8002 8" RELOCK® MANUAL VISES. Bodies are manufactured from 80,000 PSI ductile cast iron, and ways are flame hardened and ground to accuracies of ± 0.0005.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

TE-CO RWS8002 8"RELOCK® MANUAL VISES

Bodies are manufactured from 80,000 PSI ductile cast iron, and ways are flame hardened and ground to accuracies of ± 0.0005.

Technical Specifications:

  • Adds 3€ length to the collet stop
  • Conveniently locates long parts
  • Two or more tubes can be coupled for the desired length
  • Internal thread & external thread = 1.041-24

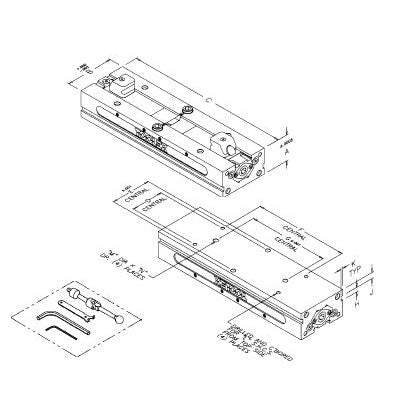

Vise Size 8 in
Type Double Station Vise
Total Height (A) 4.000 in
Total Width (B) 8.000 in
Total Length (C) 28.500 in
Hole Spacing - Across A (D) 6.000 in
Hole Spacing - Across B (E) 6.000 in
Hole Spacing A (F) 16.000 in
Hole Spacing B (G) 14.000 in
Groove Width (H) 0.625 in
Groove Position (J) 0.750 in
Groove Depth (K) 0.312 in
L 1/2-13
Hole Diameter A (M) 0.751 in
Hole Depth A (N) 0.900 in
Material Cast Iron
Clamping Pressure 0 to 16000 lb
Holding Force [Max] 0 to 16000 lbf
Weight 110.00 lb
