Brand: Te-Co
TE-CO RWS6002 6" RELOK 2 STATION LAYDOWN VISE
SKU: TC-RWS6002
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO RWS6002 6" RELOK 2 STATION LAYDOWN VISE**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO RWS6002 6" RELOK 2 STATION LAYDOWN VISE
Technical Specifications:
- Adds 3ö length to the collet stop
- Conveniently locates long parts
- Two or more tubes can be coupled for desired length
- Internal thread & external thread = 1.041-24

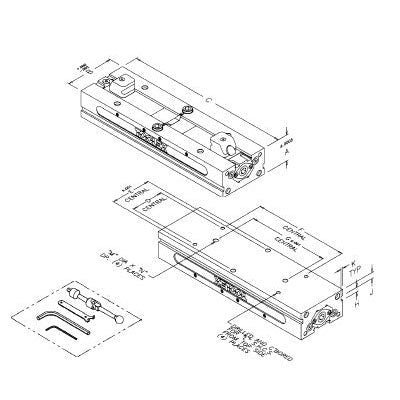

Vise Size | 6 in |
Type | Double Station Vise |
Total Height (A) | 3.250 in |
Total Width (B) | 6.000 in |
Total Length (C) | 20.500 in |
Hole Spacing - Across A (D) | 4.000 in |
Hole Spacing - Across B (E) | 5.000 in |
Hole Spacing A (F) | 12.000 in |
Hole Spacing B (G) | 10.000 in |
Groove Width (H) | 0.562 in |
Groove Position (J) | 0.750 in |
Groove Depth (K) | 0.250 in |
L | 3/8-16 |
Hole Diameter A (M) | 0.501 in |
Hole Depth A (N) | 0.630 in |
Material | Cast Iron |
Clamping Pressure | 0 to 12000 lb |
Holding Force [Max] | 0 to 12000 lbf |
Weight | 68.00 lb |
