Brand: Te-Co
TE-CO RWS4554 4" VISE TOE CLMP 1/2" BOLT
SKU: TC-RWS4554
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO RWS4554 4" VISE TOE CLMP 1/2" BOLT**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO RWS4554 4" VISE TOE CLMP 1/2" BOLT
Technical Specifications:
- Adaptable to most vises
- Vise Clamps are used to secure vise to tooling plate or machine table.
- Insert clamp nose into groove on side of vise.
- Use clamps with standard socket head cap screws.
- Black Oxide Finish and Case Hardened
- Material: 1018 Steel

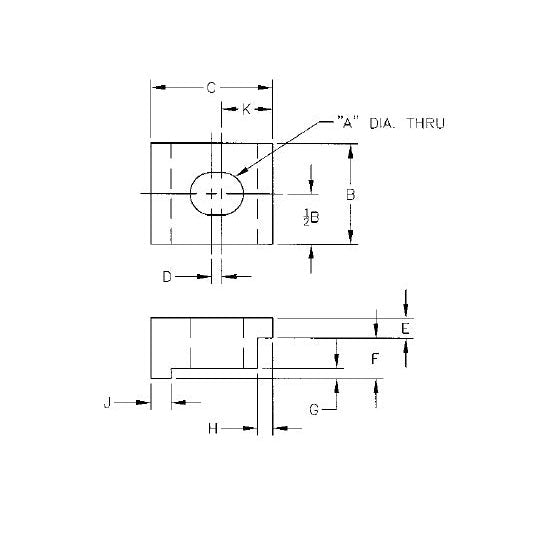

Vise Size | 4 in |
Screw Size (A) | 1/2 in |
Total Height (B) | 1.250 in |
Total Length (C) | 1-1/2 in |
Length (D) | 0.130 in |
Step Height (E) | 0.250 in |
Height (F) | 0.500 in |
Step Height (G) | 0.130 in |
Step Length (H) | 0.190 in |
Step Length (J) | 0.250 in |
Bolt Hole Position (K) | 0.630 in |
