Brand: Te-Co
TE-CO RSN4008 4" RELOK 8 SUPPORT/ALIGNMT NOSE
SKU: TC-RSN4008
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO RSN4008 4" RELOK 8 SUPPORT/ALIGNMT NOSE**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO RSN4008 4" RELOK 8 SUPPORT/ALIGNMT NOSE
Technical Specifications:
- Baseplates are designed to adapt to many machine table sizes.
- Vise columns can be located on a pallet using edge locating with shims or spacers (not included).

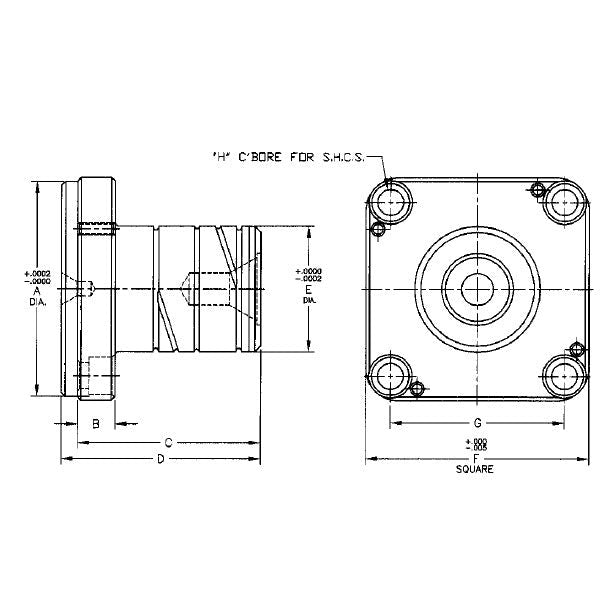

Vise Size | 4 in |
A | 2.750 in |
Flange Thickness (B) | 0.469 in |
Length (C) | 2.750 in |
Total Length (D) | 3.000 in |
Nose Diameter (E) | 1.967 in |
Flange Height (F) | 2.875 in |
Hole Spacing (G) | 2.207 in |
H | 5/16-18 |
