Brand: Te-Co

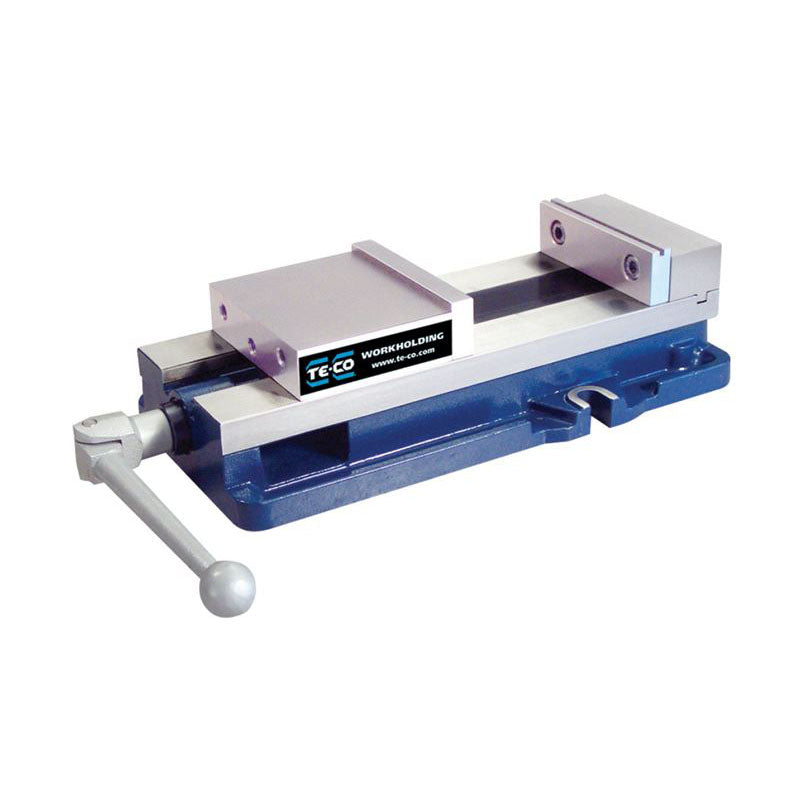

TE-CO PWS-6900 6" SINGLE STATION VISE

SKU: TC-PWS-6900
MPN: PWS-6900

  • Save $4.37
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

TE-CO PWS-6900 6" SINGLE STATION VISE
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

TE-CO PWS-6900 6" SINGLE STATION VISE


Technical Specifications:
  • Adds 3ö length to the collet stop
  • Conveniently locates long parts
  • Two or more tubes can be coupled for desired length
  • Internal thread & external thread = 1.041-24

Type
 Single Station
Style
 Machinable Jaws
Clamping Pressure
 8,200 lb

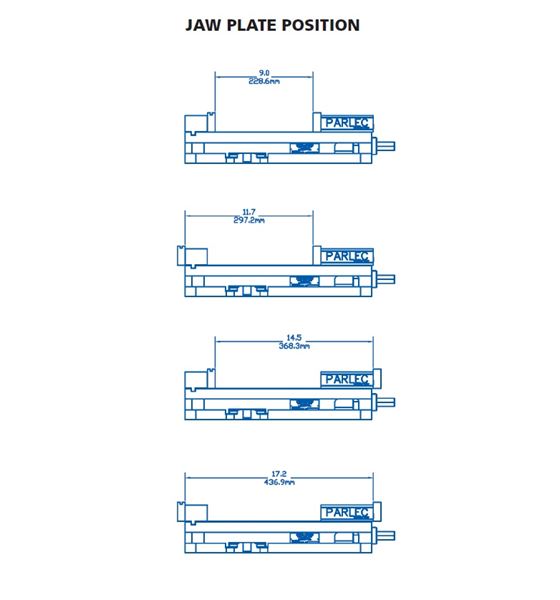

Jaw Opening
 9.000 in
228.60 mm
Jaw Width
 6.000 in
150.00 mm

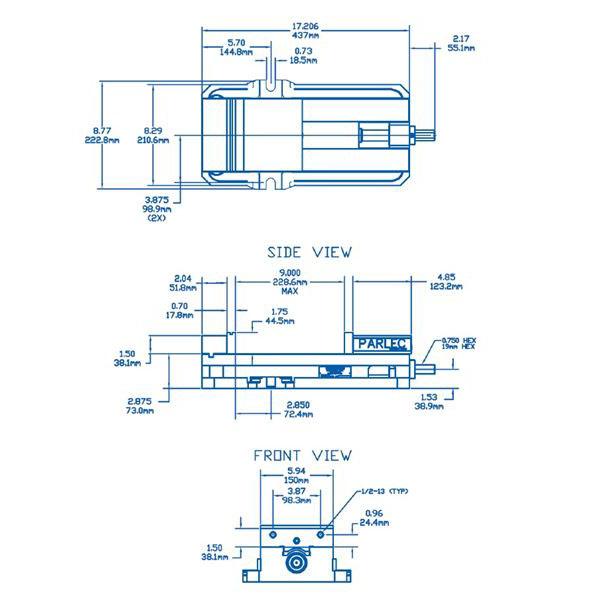

Total Length
 19.376 in
Total Width
 8.770 in
222.80 mm
Total Height
 4.625 in
Material
 Ductile Iron
Weight
 81 lb
Features
  • Up to 8,200 lbs. of clamping force
  • Bed height matched to size 2.875ö (73.025mm) +/- 0.0005ö
  • Repeatability within 0.001ö
  • Hardened vise bed and jaw plates.
  • Outside rail edges of the body are machined.
  • Sealed bearing system reduces clamping pressure andincreases bearing life.
  • Stationary jaw has machined keyway for alignment of thevise and includes alignment rail for quick setups.
  • Footprint and distance from keyway to stationary jawsame as major competitor.
