ACTEK AK46956 Safety Swivel Hoist Rings M30 X 3.50 7000 KG 42MM THREAD PROJ. STANDARD U-BAR

Short Description

Experience the unbeatable safety and versatility of ACTEK AK46956 Safety Swivel Hoist Rings! Our M30 x 3.50 thread size, 42 mm thread length, and impressive 7,000 kg rated load make this a top choice for all your hoisting needs. The sturdy U-bar design, with a 45 mm radius, 108 mm height, and 32 mm diameter, provides reliable gripping power. With a 360° swivel angle and 180° pivot angle, you'll have maximum maneuverability for any job. Plus, with a 5:1 safety factor, 637 Nm torque rating, and only 15 lbs weight, this alloy steel hoist is built for durability and performance. The black oxide finish, per MIL specification, adds a sleek and professional look. Trust in ACTEK for all your hoisting needs, and don't forget to get your replacement screw (P/N: 49842) for added peace of mind.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK46956 Safety Swivel Hoist Rings M30 X 3.50 7000 KG

Replacement Screw P/N: 49842

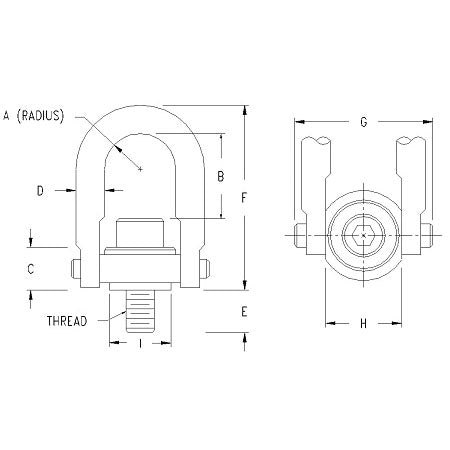

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK46956	M30 x 3.50	42 mm	7,000 kg	45 mm	108 mm	54 mm	32 mm	224 mm	159 mm	96 mm	637 Nm	15 lbs	49842	81 mm
