Brand: Te-Co
TE-CO 69321X HEXAGON METRIC BALL PLUNGER
SKU: TC-69321X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 69321X HEXAGON METRIC BALL PLUNGER**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 69321X HEXAGON METRIC BALL PLUNGER

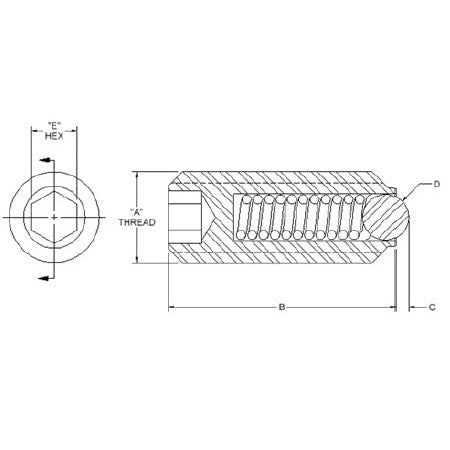

Technical Specifications:
- Material: Steel Body: ball in steel, spring steel D
- Surface finish: Steel: black oxide finish
Stainless Steel Body: 300 series, ball 400 series,spring 300 series
Finish | 300 Series |
Initial End Force | 5.00 N |
Final End Force | 7.00 N |
Thread Size (A) | M3 x 0.5 |
Body Length (B) | 9.00 mm |
Projection Size (C) | 0.50 mm |
Ball Diameter (D) | 1.50 mm |
Body Material | 300 Series Stainless Steel |
Ball Material | 400 Series Stainless Steel |
Hex Depth (H) | 1.2 mm |
Taper Diameter (D2) | 1.725 mm |
Width Across Flat (E) | 1.50 mm |
Locking Element Present | No |
