Brand: Te-Co

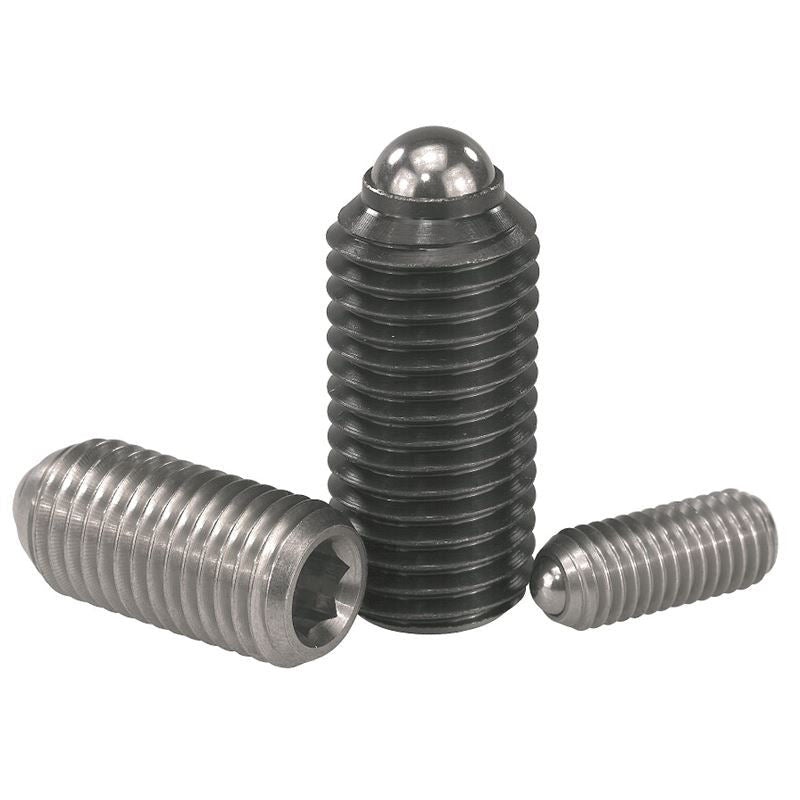

TE-CO 69309X HEXAGON METRIC BALL PLUNGER

SKU: TC-69309X
MPN: 69309X

  • $29.11
    Unit price per
  • Save $14.79
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

TE-CO 69309X HEXAGON METRIC BALL PLUNGER
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

TE-CO 69309X HEXAGON METRIC BALL PLUNGER


Technical Specifications:
  • Material:
  • Steel Body: ball in steel, spring steel D
  • Surface finish:
  • Steel: black oxide finish
    Stainless Steel Body: 300 series, ball 400 series,spring 300 series

Finish
300 Series
Initial End Force
80.00 N
Final End Force
160.00 N

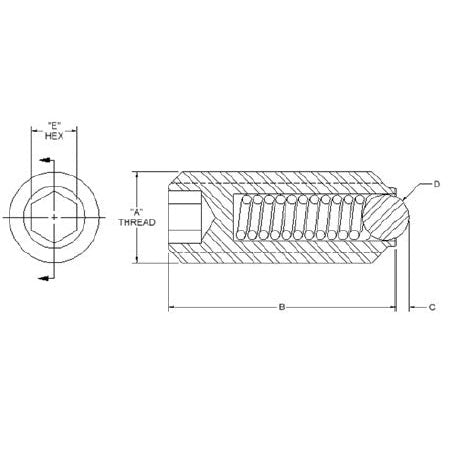

Thread Size (A)
M20 x 2.5
Body Length (B)
43.00 mm
Projection Size (C)
4.50 mm
Ball Diameter (D)
12.00 mm
Body Material
300 Series Stainless Steel
Ball Material
400 Series Stainless Steel
Hex Depth (H)
8 mm
Taper Diameter (D2)
13.8 mm
Width Across Flat (E)
10.00 mm
Locking Element Present
No
