Brand: Te-Co

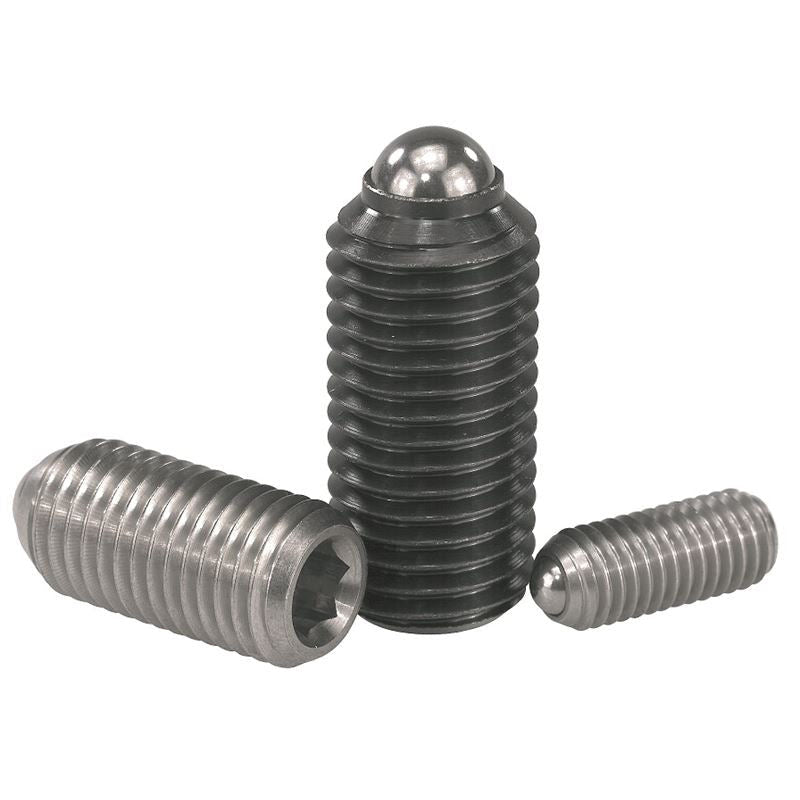

TE-CO 69224X HEXAGON METRIC BALL PLUNGER
SKU: TC-69224X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 69224X HEXAGON METRIC BALL PLUNGER**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 69224X HEXAGON METRIC BALL PLUNGER
Technical Specifications:
- Material: Steel Body: ball in steel, spring steel D
- Surface finish: Steel: black oxide finish
Stainless Steel Body: 300 series, ball 400 series,spring 300 series
Finish | Black Oxide |
Initial End Force | 28.0 N |
Final End Force | 40.0 N |

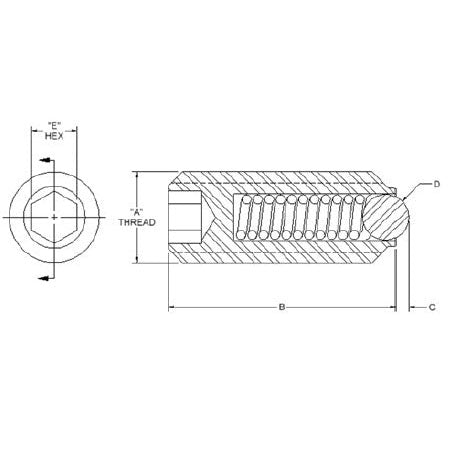

Thread Size (A) | M6 x 1.0 |
Body Length (B) | 15.00 mm |
Projection Size (C) | 1.00 mm |
Ball Diameter (D) | 3.50 mm |
Body Material | Steel |
Ball Material | Steel |
Hex Depth (H) | 2.4 mm |
Taper Diameter (D2) | 4.025 mm |
Width Across Flat (E) | 3.00 mm |
Locking Element Present | No |
