Brand: Te-Co
Te-Co 68301 Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers M6 X 1.0
SKU: TC-68301
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 68301 Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers M6 X 1.0**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 68301 Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers M6 X 1.0

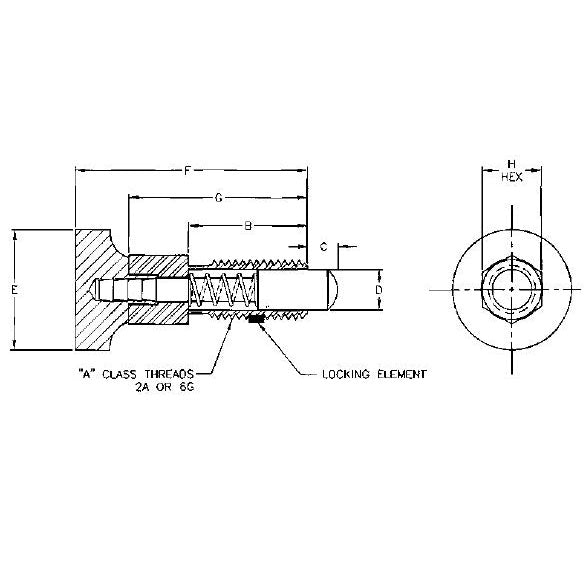

Technical Specifications:
- Contoured knob
- Unified ANSI & metric threads
Initial End Force | 0.11 lbf |
Final End Force | 0.34 lbf |
Thread Size (A) | M6 x 1.0 |
Body Length (F) | 0.980 in 25.00 mm |
Stud Length (B) | 0.500 in 13.00 mm |
Projection Size (C) | 0.118 in 3.00 mm |
Thread Locking Element | Yes |
Nose Diameter (D) | 0.117 in 3.00 mm |
Head Diameter (E) | 0.480 in 12.00 mm |
Length (G) | 19.00 mm |
Width Across Flats (H) | 0.236 in 6.00 mm |
Handle Material | Black Delrin |
Body Material | Steel |
Nose Material | Case Hardened Steel |
