Brand: Te-Co
TE-CO 67206 Metric Hex Nose Plunger M20
SKU: TC-67206
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 67206 Metric Hex Nose Plunger M20TE-CO Spring Loaded Devices > Hex Nose Plungers > Metric Hex Nose Plunger > 67206
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 67206 Metric Hex Nose Plunger M20
TE-CO Spring Loaded Devices > Hex Nose Plungers > Metric Hex Nose Plunger > 67206

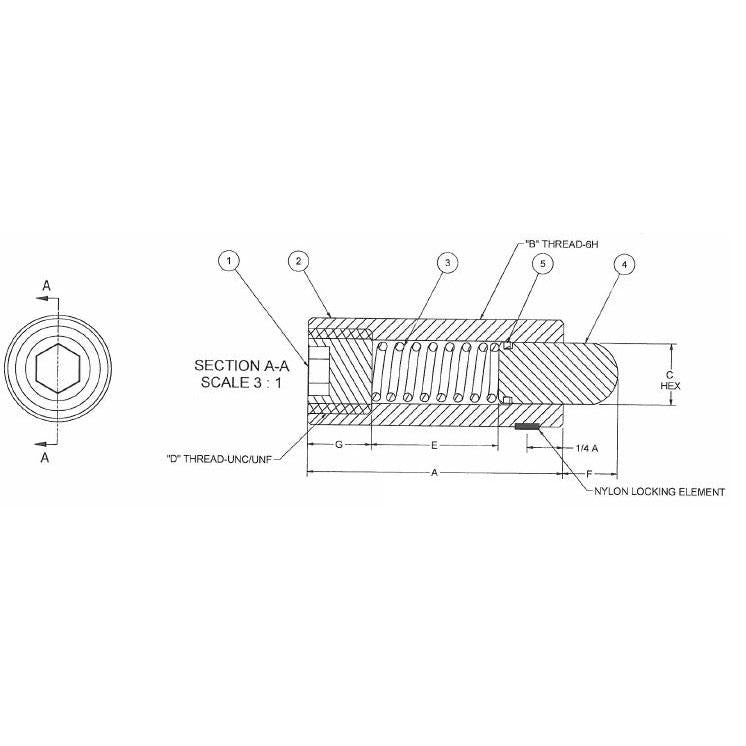

Specifications:
| Type | Nose Plunger |
| Initial End Force | 6.7 lbs |
| Final End Force | 37.3 lbs |
| Thread Size (B) | M20 x 2.5-6H |
| Total Length | 2.062 in |
| Thread Length (A) | 1.750 in |
| Nose Diameter (C) | 0.375 in |
| Travel (F) | 0.312 in |
| Locking Element | Nylon Element |
| Material | Steel |
| D | 1/2-20 UNF |
| Spring Loaded E | 0.827 in |
| G | 0.375 in |
