Brand: Te-Co

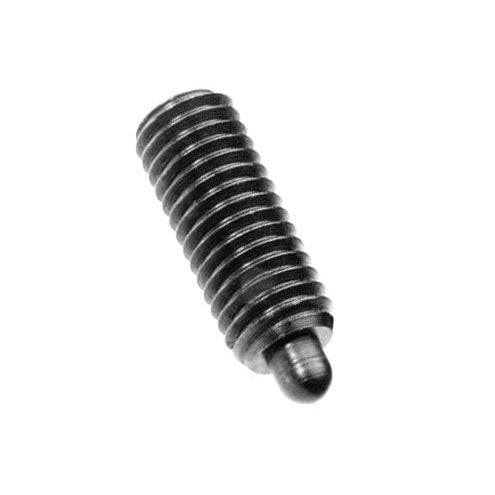

Te-Co 67094 Posi Hex Plungers Metric - Steel Body, Delrin Nose M16 X 2.0
SKU: TC-67094
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 67094 Posi Hex Plungers Metric - Steel Body, Delrin Nose M16 X 2.0**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 67094 Posi Hex Plungers Metric - Steel Body, Delrin Nose M16 X 2.0
Technical Specifications:
- Material:
Steel Body: 12L14 Steel
Stainless Steel Body: 303 Stainless Steel
Steel Plunger: 12L14 Steel, Case Hardened
Stainless Steel Plunger: 303 Stainless Steel - Heavy End Force: Black Oxide Finish
- Light End Force: Zinc Plated Nose
- Easy installation and removal
- Withstands high torque
- One-piece body no set screw in back
Finish | Zinc Plated Nose |
Initial End Force | 3.50 lbf |
Final End Force | 10.50 lbf |

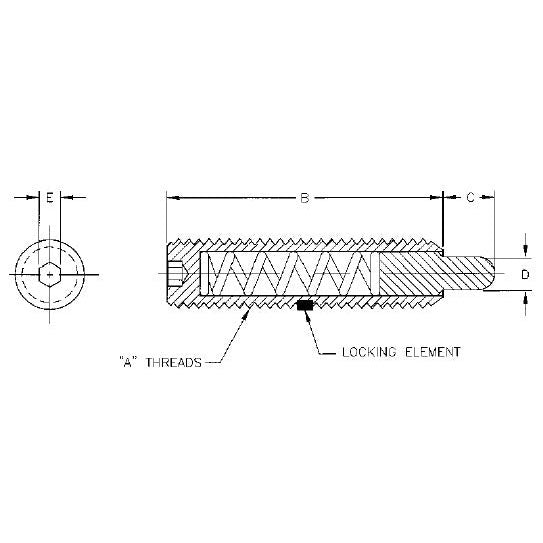

Thread Size (A) | M16 x 2.0 |
Body Length (B) | 38.00 mm |
Projection Size (C) | 8.00 mm |
Width Across Flats (E) | 8.00 mm |
Nose Diameter (D) | 7.87 mm |
Body Material | 12L14 Steel |
Nose Material | White Delrin |
Locking Element | Yes |
